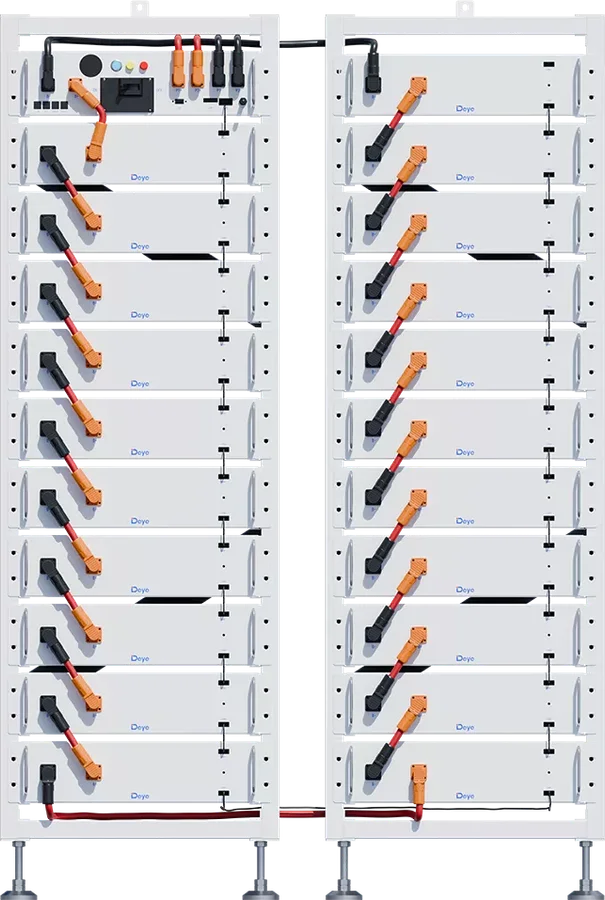

Batteries · High-voltage batteryBOS-A High-Voltage Rack Battery Module 7.68 kWh
7.68 kWh
A 7.68 kWh rack-mounted lithium battery module for commercial and industrial storage. Modules connect in series under a BOS-A-PDU-2 control box to make systems from about 54 kWh to 161 kWh, for 50–100 kW Deye high-voltage inverters.
Specifications
- Model
- BOS-A
- Capacity
- 7.68 kWh per module (200 Ah)
- Nominal voltage
- 38.4 V per module; 268.8 / 499.2 / 806.4 V per system
- Chemistry
- LiFePO4 (lithium iron phosphate)
- Scalable to
- 7, 13 or 21 modules in series (53.76 / 99.84 / 161.28 kWh)
- Rated current
- 100 A recommended, 160 A max
- Cycle life
- ≥6,000 cycles (25 °C, 0.5C/0.5C, 70% end of life)
- Warranty
- 10 years
Specifications are from the manufacturer and may vary by model variant. Ask us to confirm before ordering.
