Batteries · Battery accessoriesBOS-A-PDU-2 High-Voltage Control Box

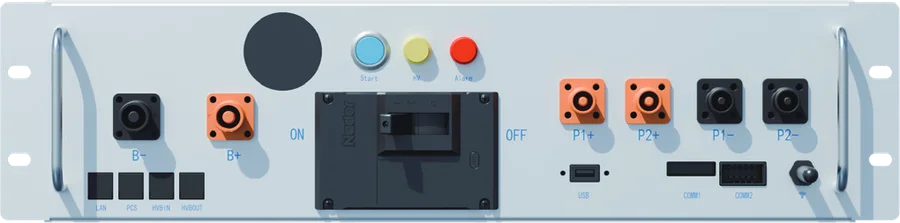

BOS-A control box
The high-voltage control box for a BOS-A battery cluster, with a display for charge level and fault codes, an isolating switch, and terminals for up to two inverters.
Specifications
- Model
- BOS-A-PDU-2
- Battery voltage
- 200–1000 V DC operating range
- Rated current
- 160 A max (charge/discharge)
- IP rating
- IP20
- Dimensions
- 572 × 632 × 142.2 mm
- Weight
- 21 kg
- Communication
- Inverter (PCS) COM port, Bluetooth app, USB for BMS updates
- Installation
- Top of the BOS-A rack; connects to up to two inverters
Specifications are from the manufacturer and may vary by model variant. Ask us to confirm before ordering.
