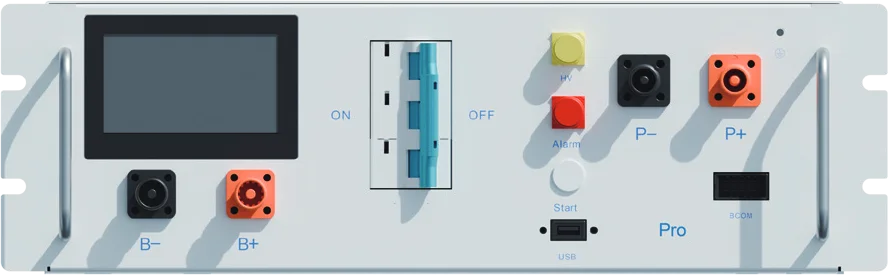

Batteries · Battery accessoriesBOS-G-PDU-2 High-Voltage Control Box
BOS-G control box
The high-voltage control box for a BOS-G Pro battery cluster. It manages the stacked modules, connects the rack to the inverter, and comes with its own power and communication cables.
Specifications
- Model
- BOS-G-PDU-2
- Battery voltage
- 200–1000 V DC operating range
- Rated current
- 100 A nominal, 120 A max (charge/discharge)
- IP rating
- IP20
- Dimensions
- 440 × 570 × 150 mm
- Weight
- 19 kg
- Installation
- Mounts in the BOS-G Pro rack as the battery cluster control box
Specifications are from the manufacturer and may vary by model variant. Ask us to confirm before ordering.
